IC GATE DRVR HALF-BRIDGE 8SOIC

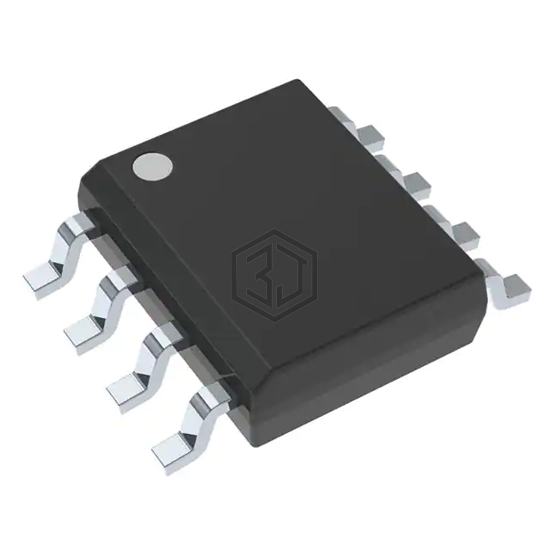

LM5101CMAX is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 8,746
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 2.3V, - |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 990ns, 715ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
LM5101CMAX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5100CMA/NOPB | Texas Instruments | HALF BRIDGE BASED MOSFET DRIVER, | 100% | View |
| LM5109BMA/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 70% | View |
| HIP2103FRTAAZ-T | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 8TDFN | 66% | View |
| MIC4605-1YMVAO | Microchip Technology | IC GATE DRVR HALF-BRIDGE 85V | 66% | View |
| 2EDF7175FXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDG DSO16-11 | 63% | View |
| ISL83202IBZT | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 16SOIC | 62% | View |
