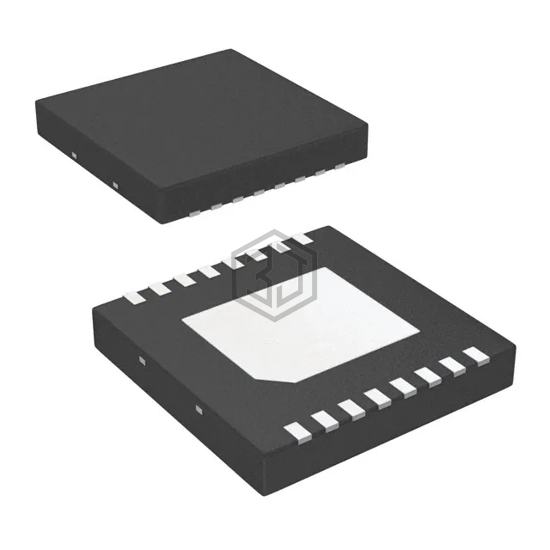

IC REG CTRLR MULT TOP 16WSON
LM5041SD is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 15V ~ 90V, package / case 16-WFDFN Exposed Pad.
In Stock: 3,706
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Half-Bridge, Push-Pull |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 15V ~ 90V |
| Frequency - Switching | 200kHz, 600kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) |
LM5041SD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5020SDX-1/NOPB | Texas Instruments | IC REG CTRLR FLYBACK 10WSON | 93% | View |
| LM5020SD-2/NOPB | Texas Instruments | IC REG CTRLR FLYBACK 10WSON | 93% | View |
| LTC3780IUH#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 32QFN | 85% | View |
| UCC28220QDRQ1 | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 85% | View |
| LTC3780IG#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 24SSOP | 85% | View |
| LM5032MTCX/NOPB | Texas Instruments | IC REG CTRLR FWRD CONV 16TSSOP | 83% | View |
Submit your RFQ for LM5041SD and get a quote within 24 hours.
