HALF BRIDGE CONTROLLER W/INTEGRA

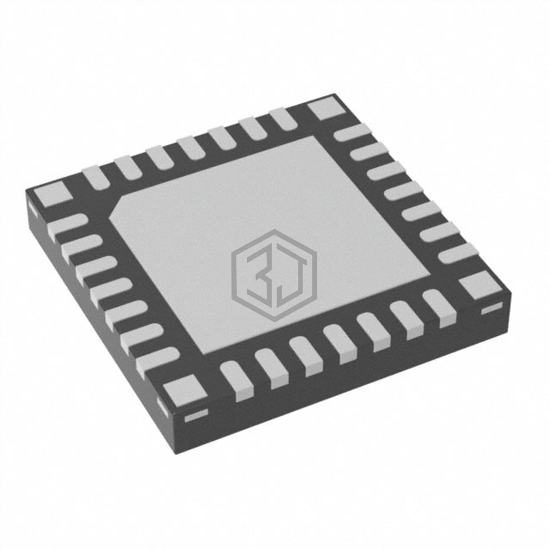

LM5036RJBR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. HALF BRIDGE CONTROLLER W/INTEGRA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 7.5V ~ 8.1V, package / case 28-WFQFN Exposed Pad.
In Stock: 3,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Half-Bridge |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 8.1V |
| Frequency - Switching | 2MHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Frequency Control, Ramp |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-WQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5036RJBT | Texas Instruments | HALF-BRIDGE PWM CONTROLLER WITH | 100% | View |
Submit your RFQ for LM5036RJBR and get a quote within 24 hours.
