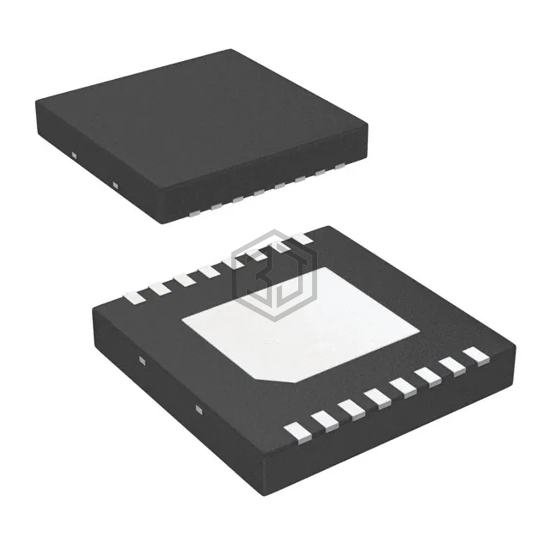

IC REG CTRLR FWRD CONV 16WSON
LM5026SD is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR FWRD CONV 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 15V, package / case 16-WFDFN Exposed Pad.
In Stock: 7,428
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Frequency - Switching | 200kHz ~ 590kHz |
| Duty Cycle (Max) | 70%, 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Frequency Control, Reset, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) |
LM5026SD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5026MT | National Semiconductor | SWITCHING CONTROLLER, CURRENT-MO | 100% | View |
| LM5025BSD/NOPB | Texas Instruments | IC REG CTRLR FWRD CONV 16WSON | 100% | View |
| LM5025ASD/NOPB | Texas Instruments | IC REG CTRLR FWRD CONV 16WSON | 100% | View |
| LM5025CMTC/NOPB | Texas Instruments | IC REG CTRLR FWRD CONV 16TSSOP | 100% | View |
| LM5025AMTC/NOPB | Texas Instruments | IC REG CTRLR FWRD CONV 16TSSOP | 100% | View |
| LM5035BMH/NOPB | National Semiconductor | LM5035B PWM CONTROLLER WITH INTE | 87% | View |
Submit your RFQ for LM5026SD and get a quote within 24 hours.
