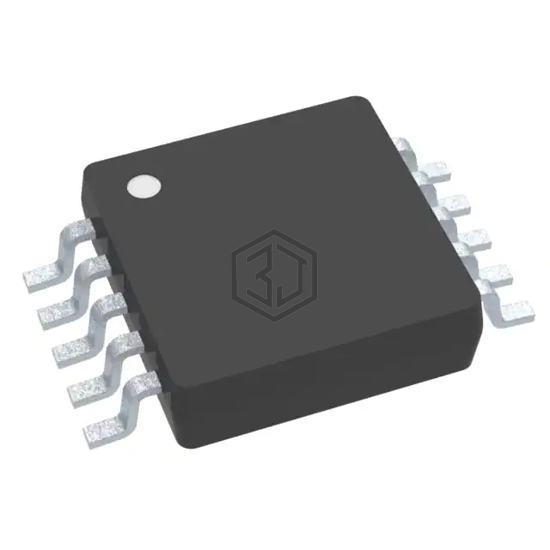

IC REG CTRLR FLYBACK 10MSOP
LM5020MM-2 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR FLYBACK 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 15V, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width).
In Stock: 2,594
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Frequency - Switching | 200kHz ~ 630kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
LM5020MM-2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5020SDX-1/NOPB | Texas Instruments | IC REG CTRLR FLYBACK 10WSON | 100% | View |
| LM5020MMX-1 | Texas Instruments | IC REG CTRLR FLYBACK 10MSOP | 100% | View |
| LM5020SD-1 | Texas Instruments | IC REG CTRLR FLYBACK 10WSON | 100% | View |
| MP2980GR-P | Monolithic Power Systems Inc. | 24V, HIGH EFFICIENCY, SYNCHRONOU | 95% | View |
| UCC28220QDRQ1 | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 92% | View |
| LTC3789EUFD#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 28QFN | 84% | View |
Submit your RFQ for LM5020MM-2 and get a quote within 24 hours.
