IC REG MULTI CONFG ADJ 16WSON

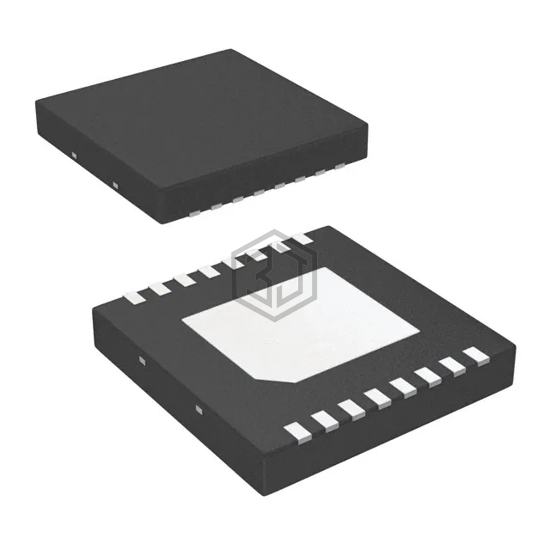

LM5000SD-3 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG MULTI CONFG ADJ 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1.35A (Switch).
In Stock: 6,672
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.1V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | 80V (Switch) |
| Current - Output | 1.35A (Switch) |
| Frequency - Switching | 300kHz, 700kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) |
LM5000SD-3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5000-3MTC | National Semiconductor | SWITCHING REG, CURRENT-MODE, 2.7 | 100% | View |
| LM5000SD-3/NOPB | Texas Instruments | IC REG MULTI CONFG ADJ 16WSON | 100% | View |
| LM5000-3MTCX/NOPB | Texas Instruments | IC REG MULT CONFG ADJ 16TSSOP | 100% | View |
| LM5000SDX-3/NOPB | Texas Instruments | IC REG MULTI CONFG ADJ 16WSON | 100% | View |
| LM5000-3MTC/NOPB | Texas Instruments | IC REG MULT CONFG ADJ 16TSSOP | 100% | View |
| LT8362EDD#WTRPBF | Analog Devices Inc. | L IQ BOOST/SEPIC/INV CONV W/ 2A, | 63% | View |
Submit your RFQ for LM5000SD-3 and get a quote within 24 hours.
