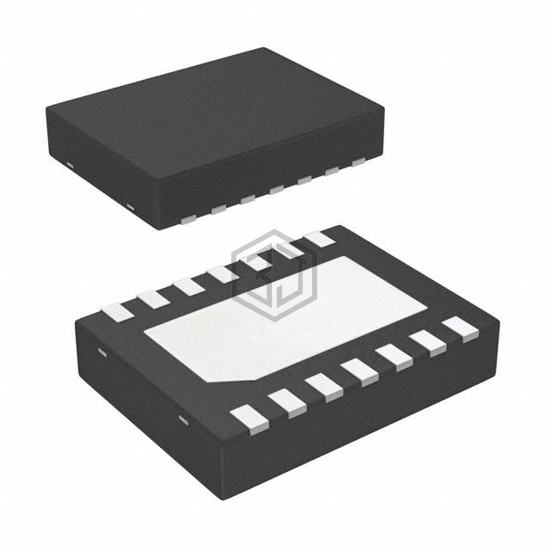

IC LED DRV RGLTR PWM 20MA 14WSON
LM3570SD/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 20MA 14WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 4.3V, package / case 14-WFDFN Exposed Pad.
In Stock: 2,262
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 3 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 4.3V |
| Current - Output / Channel | 20mA |
| Frequency | 500kHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-WSON (4x3) |
LM3570SD/NOPB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM36923HYFFR | Texas Instruments | IC LED DRV RGLTR I2C 12DSBGA | 74% | View |
| LM3532TMX-40A/NOPB | National Semiconductor | IC LED DRV RGLTR PWM 16DSBGA | 72% | View |
| LM3530UME-40/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 12DSBGA | 64% | View |
| LM3530UME-40B/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 12DSBGA | 64% | View |
| LM3632AYFFR | Texas Instruments | IC LED DRV RGLTR ANALOG 30DSBGA | 58% | View |
| MAX1599ETA+T | Analog Devices Inc./Maxim Integrated | IC LED DRV RGLTR PWM 950MA 8TDFN | 53% | View |
Submit your RFQ for LM3570SD/NOPB and get a quote within 24 hours.
