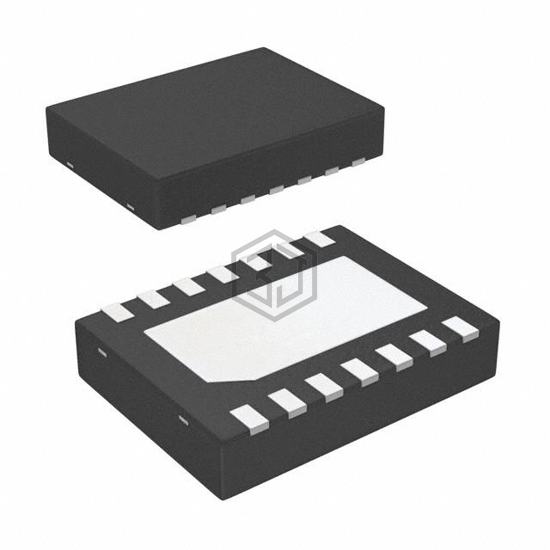

IC LED DRV RGLTR PWM 14WSON
LM3520SDX/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 14WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 22.5V ~ 23.2V, package / case 14-WFDFN Exposed Pad.
In Stock: 7,794
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 2 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 22.5V ~ 23.2V |
| Current - Output / Channel | 700mA (Switch) |
| Frequency | 1.1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-WSON (4x3) |
LM3520SDX/NOPB is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT4532WSC | Richtek USA Inc. | IC LED DRIVER RGLTR I2C 10WLCSP | 99% | View |
| RT4501WSC | Richtek USA Inc. | IC LED DRV RGLTR PWM 10WLCSP | 82% | View |
| LDS8620-002-T2 | IXYS Integrated Circuits Division | IC LED DRV RGLTR PWM 96MA 16TQFN | 79% | View |
| TB62757FUG,EL | Toshiba Semiconductor and Storage | IC LED DRIVER RGLTR DIM SOT23-6 | 72% | View |
| RT4533GJ6 | Richtek USA Inc. | IC LED DRVR RGLTR PWM TSOT23-6 | 71% | View |
| RT4533AGJ6 | Richtek USA Inc. | IC LED DRVR RGLTR PWM TSOT23-6 | 71% | View |
Submit your RFQ for LM3520SDX/NOPB and get a quote within 24 hours.
