IC LED DRV RGLTR PWM 16WQFN

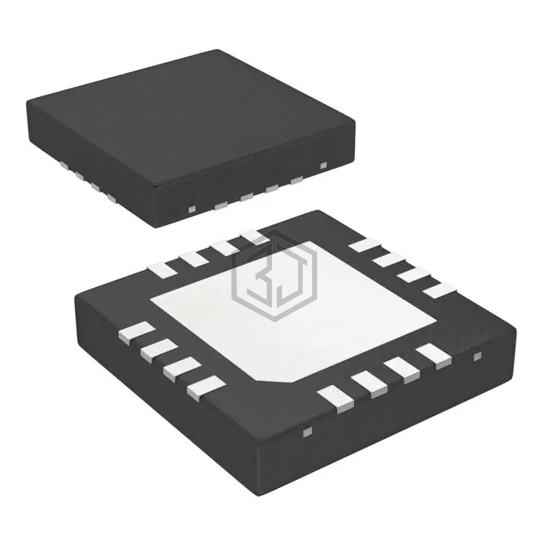

LM3503SQX-44/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 44V, package / case 16-WFQFN Exposed Pad.
In Stock: 8,025
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 2 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 44V |
| Current - Output / Channel | 750mA (Switch) |
| Frequency | 1MHz |
| Dimming | Analog, PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
LM3503SQX-44/NOPB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM3503ITL-44 | National Semiconductor | IC LED DRVR RGLTR PWM 10DSBGA | 100% | View |
| LT3466EFE#PBF | Analog Devices Inc. | IC LED DRVR RGLTR PWM 16TSSOP | 76% | View |
| LM3699YFQR | Texas Instruments | IC LED DRVR RGLTR PWM 12DSBGA | 74% | View |
| NCP5623MUTBG | onsemi | IC LED DRV RGLTR I2C 30MA 12LLGA | 74% | View |
| AP3605FNTR-E1 | Diodes Incorporated | IC LED DRVR RGLTR PWM 20MA 16QFN | 72% | View |
| MP2410AGJ-Z | Monolithic Power Systems Inc. | IC LED DRV RGLTR PWM 2A TSOT23-6 | 57% | View |
Submit your RFQ for LM3503SQX-44/NOPB and get a quote within 24 hours.
