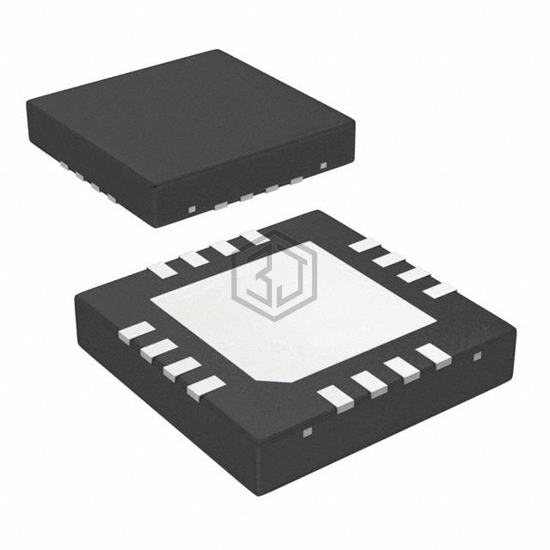

IC LED DRV RGLTR PWM 16WQFN
LM3503SQX-35 is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 35V, package / case 16-WFQFN Exposed Pad.
In Stock: 4,552
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 2 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 35V |
| Current - Output / Channel | 750mA (Switch) |
| Frequency | 1MHz |
| Dimming | Analog, PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
LM3503SQX-35 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM3502SQ-44 | Texas Instruments | IC LED DRV RGLTR PWM 16WQFN | 93% | View |
| SP6687ER1-L | Sipex | IC LED DRIVER RGLTR PWM 16QFN | 92% | View |
| MAX8630WETD20+ | Analog Devices Inc./Maxim Integrated | IC LED DRV RGLTR PWM 14TDFN | 70% | View |
| TPS61042DRBTG4 | Texas Instruments | IC LED DRVR RGLTR PWM 60MA 8SON | 68% | View |
| LM3502SQX-16/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 16WQFN | 68% | View |
| MCP1643T-I/MSVAO | Microchip Technology | IC LED DRV RGLTR PWM 550MA 8MSOP | 57% | View |
Submit your RFQ for LM3503SQX-35 and get a quote within 24 hours.
