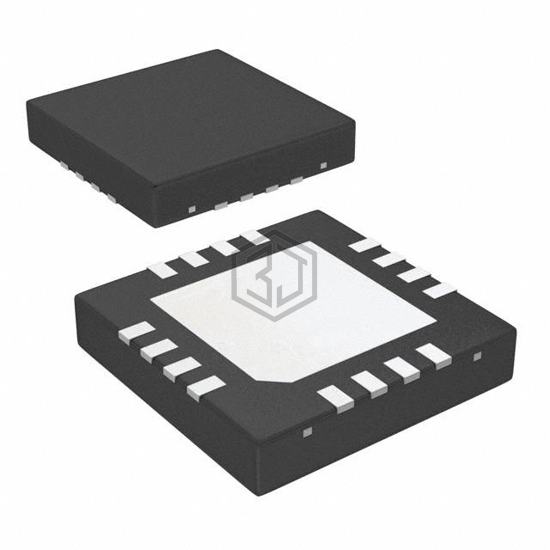

IC LED DRV RGLTR PWM 16WQFN
LM3502SQX-16 is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 16V, package / case 16-WFQFN Exposed Pad.
In Stock: 7,816
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 2 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 16V |
| Current - Output / Channel | 400mA (Switch) |
| Frequency | 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
LM3502SQX-16 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM3503ITLX-16/NOPB | Texas Instruments | IC LED DRVR RGLTR PWM 10TUSMD | 100% | View |
| LM3503SQX-16 | Texas Instruments | IC LED DRV RGLTR PWM 16WQFN | 100% | View |
| LDS8681008-T2 | IXYS Integrated Circuits Division | IC LED DRV RGLTR PWM 16TQFN | 77% | View |
| LM3501TL-21/NOPB | Texas Instruments | IC LED DRIVER RGLTR 640MA 8DSBGA | 77% | View |
| TPS61043DRBRG4 | Texas Instruments | IC LED DRVR RGLTR PWM 60MA 8SON | 74% | View |
| RT9293BGJ6 | Richtek USA Inc. | IC LED DRVR RGLTR PWM TSOT23-6 | 72% | View |
Submit your RFQ for LM3502SQX-16 and get a quote within 24 hours.
