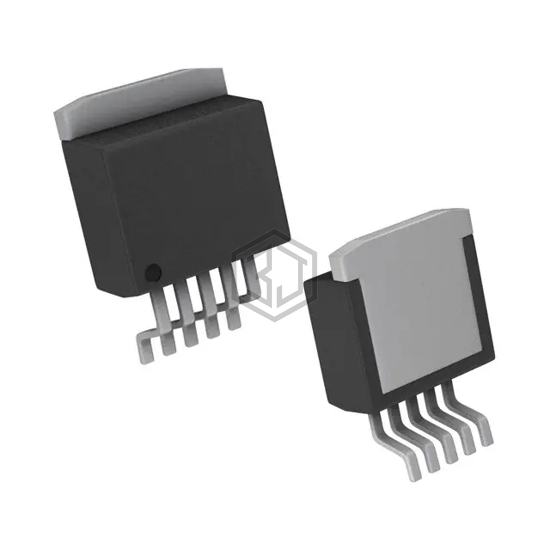

IC REG LIN POS ADJ 1A DDPAK
LM2941S is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 1A DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 15 mA.
In Stock: 747
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 1V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
LM2941S is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2941LD/NOPB | Texas Instruments | IC REG LINEAR POS ADJ 1A 8WSON | 100% | View |
| NCV8182CDTRKG | onsemi | IC REG LIN POS ADJ 200MA DPAK-5 | 53% | View |
| LP3878MRX-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA 8SO | 52% | View |
| LP3878SDX-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA 8WSON | 52% | View |
| TLE4470GS | Infineon Technologies | IC REG LINEAR FIXED POS LDO REG | 51% | View |
| LP3874ES-ADJ | National Semiconductor | IC REG LIN POS ADJ 800MA DDPAK | 50% | View |
Submit your RFQ for LM2941S and get a quote within 24 hours.
