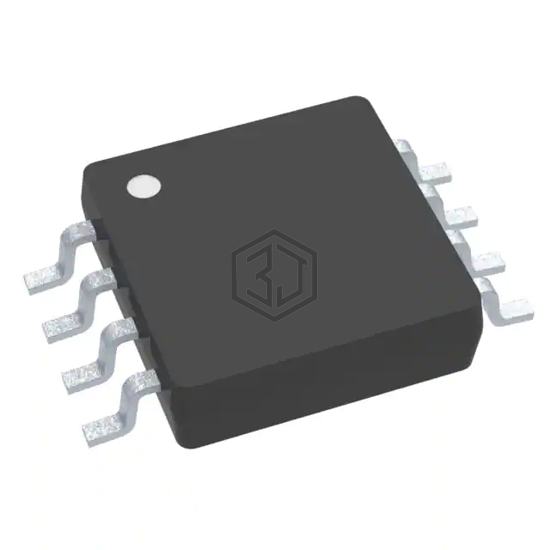

IC REG CHARGE PUMP INV 8VSSOP
LM2682MMX is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG CHARGE PUMP INV 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), current - output 10mA.
In Stock: 6,982
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Ratiometric |
| Output Configuration | Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - |
| Current - Output | 10mA |
| Frequency - Switching | 6kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
LM2682MMX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2682MM/NOPB | Texas Instruments | IC REG CHARGE PUMP INV 8VSSOP | 100% | View |
| LM2682MM | National Semiconductor | SWITCHED CAPACITOR CONVERTER, 0. | 100% | View |
| LM2682MMX/NOPB | Texas Instruments | IC REG CHARGE PUMP INV 8VSSOP | 100% | View |
| LM2682M/NOPB | Texas Instruments | IC REG CHARG PUMP INV 10MA 8SOIC | 100% | View |
| LM2682MX/NOPB | Texas Instruments | IC REG CHARG PUMP INV 10MA 8SOIC | 100% | View |
| NJU7665AF-TE1# | Nisshinbo Micro Devices Inc. | IC REG CHARGE PUMP INV SOT23-5 | 68% | View |
Submit your RFQ for LM2682MMX and get a quote within 24 hours.
