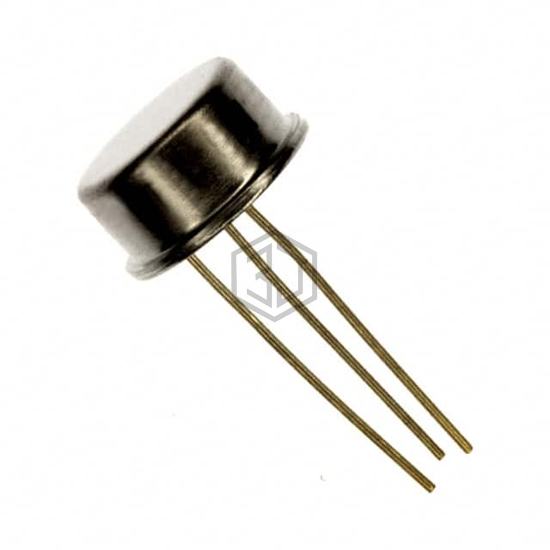

IC REG LINEAR 5.05V 200MA TO39-3
LM109H is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 5.05V 200MA TO39-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-205AD, TO-39-3 Metal Can, current - supply (max) 10 mA.
In Stock: 270
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 5.05V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 5.2 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-3 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM109H/NOPB | Texas Instruments | IC REG LINEAR 5.05V 200MA TO39-3 | 100% | View |
| LM109K | Texas Instruments | IC REG LINEAR 5.05V 1A TO3-2 | 83% | View |
| LM109K STEEL | Texas Instruments | IC REG LINEAR 5.05V 1A TO3-2 | 83% | View |
| LM109K STEEL/NOPB | Texas Instruments | IC REG LINEAR 5.05V 1A TO3-2 | 83% | View |
Submit your RFQ for LM109H and get a quote within 24 hours.
