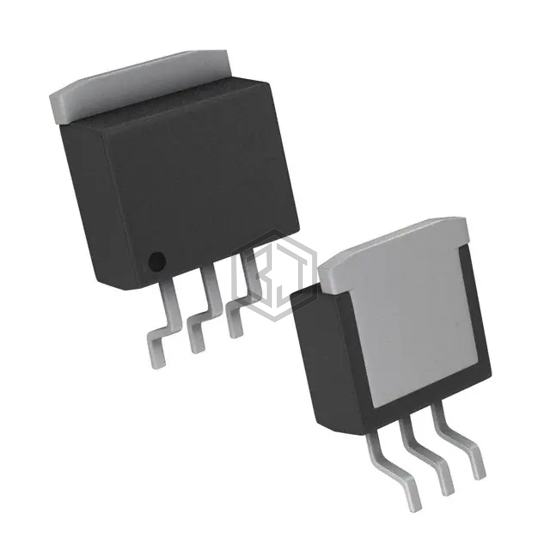

IC REG LIN POS ADJ 1.5A DDPAK
LM1086CSX-ADJ is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 1.5A DDPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - supply (max) 10 mA.
In Stock: 3,567
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 29V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK/TO-263-3 |
LM1086CSX-ADJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LMS8117ADT-ADJ/NOPB | Texas Instruments | IC REG LINEAR POS ADJ 1A TO252-3 | 73% | View |
| LM1117S-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA DDPAK | 70% | View |
| LM1117S-ADJ | National Semiconductor | IC REG LINEAR ADJ POS LDO REG | 70% | View |
| LM1117SX-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA DDPAK | 70% | View |
| LM1117ILD-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA 8WSON | 70% | View |
| LP3855EMP-ADJ | National Semiconductor | IC REG LIN POS ADJ 1.5A SOT223-5 | 68% | View |
Submit your RFQ for LM1086CSX-ADJ and get a quote within 24 hours.
