IC REG LIN POS ADJ 1.5A DDPAK

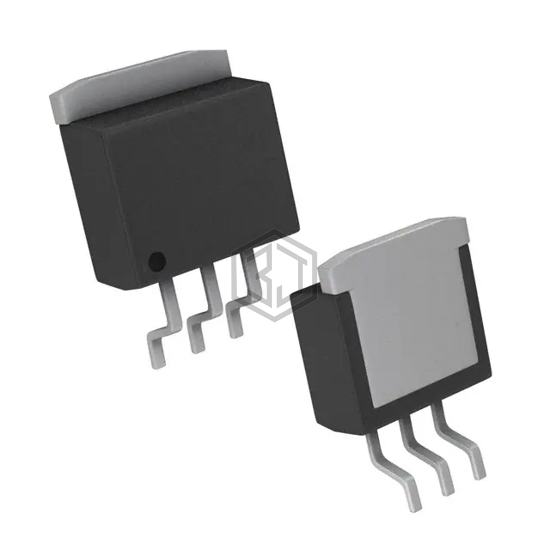

LM1086CS-ADJ/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 1.5A DDPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - supply (max) 10 mA.
In Stock: 8,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 29V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK/TO-263-3 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM1086IS-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A DDPAK | 100% | View |
| LM1086ISX-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A DDPAK | 100% | View |
| LM1117LD-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA 8WSON | 70% | View |
| LM1117IDT-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA TO252-3 | 70% | View |
| LM1117IMP-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA SOT223 | 70% | View |
| LM1117IMPX-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 800MA SOT223 | 70% | View |
