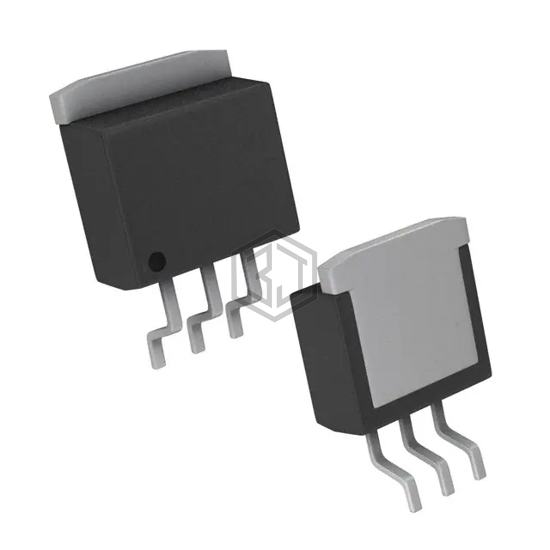

IC REG LIN 3.3V 1.5A DDPAK
LM1086CS-3.3/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 3.3V 1.5A DDPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - supply (max) 10 mA.
In Stock: 6,739
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 27V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 72dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK/TO-263-3 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM1086CSX-2.5/NOPB | Texas Instruments | IC REG LIN 2.5V 1.5A DDPAK | 92% | View |
| LM1086CS-5.0/NOPB | Texas Instruments | IC REG LIN 5V 1.5A DDPAK/TO263-3 | 86% | View |
| LM1117MPX-3.3/NOPB | Texas Instruments | IC REG LIN 3.3V 800MA SOT223-4 | 73% | View |
| LM1117DT-2.5/NOPB | Texas Instruments | IC REG LINEAR 2.5V 800MA TO252-3 | 65% | View |
| LP3855ES-2.5/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A DDPAK | 60% | View |
| LT3063IMS8E-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8MSOP | 54% | View |
Submit your RFQ for LM1086CS-3.3/NOPB and get a quote within 24 hours.
