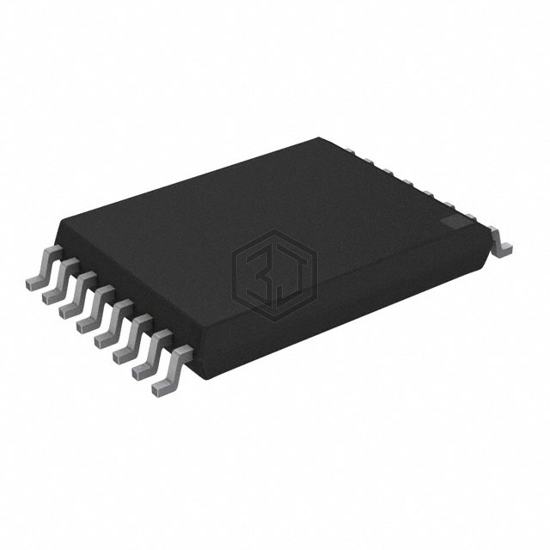

DGTL ISO 5700VRMS 2CH GP 16SOIC
ISO7821LLDWW is a Digital Isolators manufactured by Texas Instruments. DGTL ISO 5700VRMS 2CH GP 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2.25V ~ 5.5V, package / case 16-SOIC (0.551", 14.00mm Width).
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 25ns, 25ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.551", 14.00mm Width) |
| Supplier Device Package | 16-SOIC |
Submit your RFQ for ISO7821LLDWW and get a quote within 24 hours.
