DGTL ISO 3000VRMS 4CH GP 16SSOP

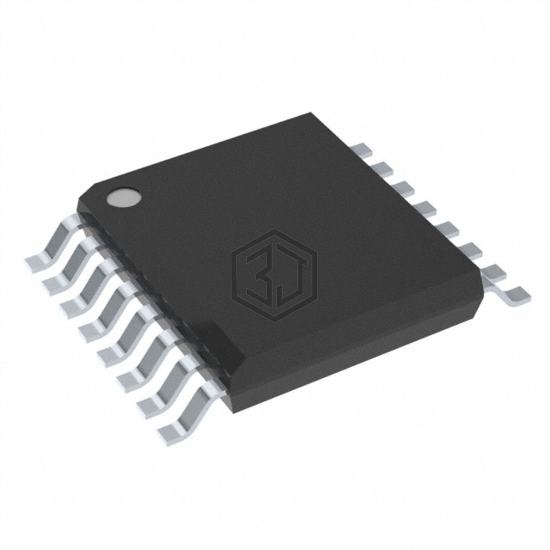

ISO7741DBQ is a Digital Isolators manufactured by Texas Instruments. DGTL ISO 3000VRMS 4CH GP 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2.25V ~ 5.5V, package / case 16-SSOP (0.154", 3.90mm Width).
In Stock: 1,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 85kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Pulse Width Distortion (Max) | 4.9ns |
| Rise / Fall Time (Typ) | 2.4ns, 2.4ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP |
Submit your RFQ for ISO7741DBQ and get a quote within 24 hours.
