IC MTR DRVR BIPOLAR 7-40V 64HQFP

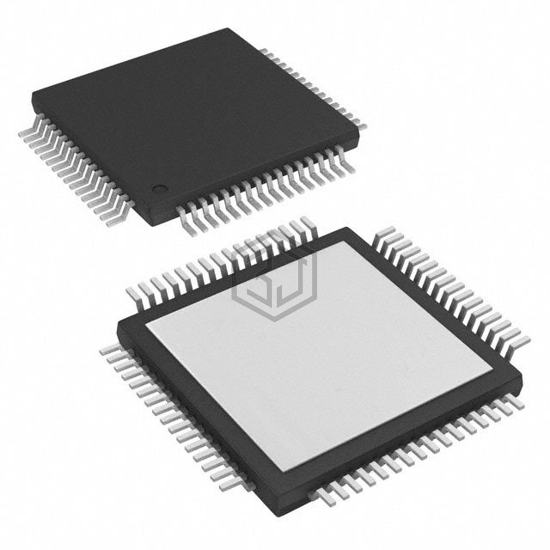

DRV8809PAP is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. IC MTR DRVR BIPOLAR 7-40V 64HQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 120°C (TJ), voltage - supply 7V ~ 40V, package / case 64-PowerTQFP.
In Stock: 1,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (8) |
| Interface | SPI |
| Technology | Power MOSFET |
| Step Resolution | 1 ~ 1/16 |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | 7V ~ 40V |
| Voltage - Load | 18V ~ 40V |
| Operating Temperature | 0°C ~ 120°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AN44063A-VF | Panasonic Electronic Components | IC MTR DRV BIPLR 4.5-5.5V 32SSOP | 90% | View |
| TB62261FTAG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 36WQFN | 83% | View |
| TLE42062GXUMA2 | Infineon Technologies | IC MOTOR DRIVER 8V-18V 14DSO | 83% | View |
| TLE4206-2G | Infineon Technologies | TLE4206 - SERVO AND STEPPER MOTO | 83% | View |
| MLX90411LZE-BAS-043-RE | Melexis Technologies NV | IC FAN DRIVER 40V 330MA SOT23-6L | 81% | View |
| MLX90411LZE-BAF-043-RE | Melexis Technologies NV | IC FAN DRIVER 40V 330MA SOT23-6L | 81% | View |
Submit your RFQ for DRV8809PAP and get a quote within 24 hours.
