AUTOMOTIVE 40-V H-BRIDGE SMART G

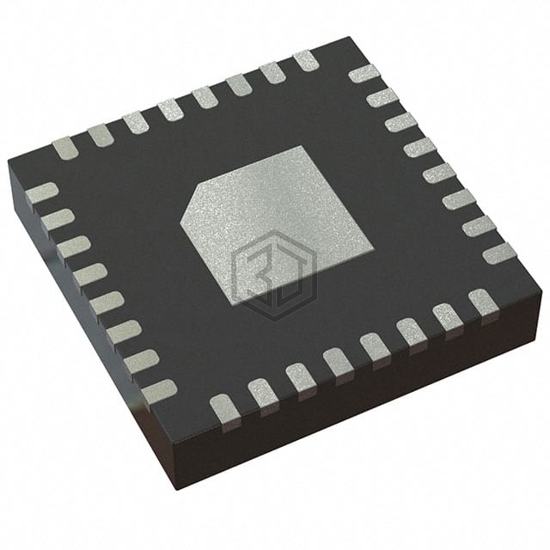

DRV8706HQRHBRQ1 is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. AUTOMOTIVE 40-V H-BRIDGE SMART G. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.9V ~ 37V, package / case 32-VFQFN Exposed Pad.
In Stock: 5,012
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Automotive, Brushed DC |
| Current - Output | 5mA |
| Voltage - Supply | 4.9V ~ 37V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8705SQRHBRQ1 | Texas Instruments | AUTOMOTIVE, 40-V, H-BRIDGE SMART | 100% | View |
| DRV8706SQRHBRQ1 | Texas Instruments | AUTOMOTIVE 40-V H-BRIDGE SMART G | 100% | View |
Submit your RFQ for DRV8706HQRHBRQ1 and get a quote within 24 hours.
