35-V, 1.5-A BIPOLAR STEPPER DRIV

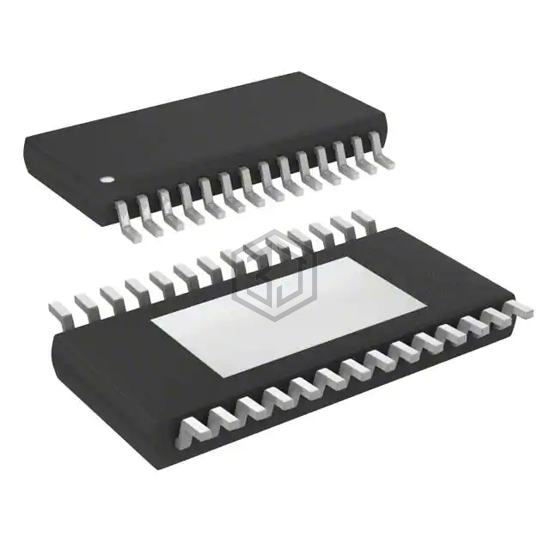

DRV8426PWPR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. 35-V, 1.5-A BIPOLAR STEPPER DRIV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 0V ~ 5.5V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 9,657
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Step/Direction |
| Technology | Power MOSFET |
| Step Resolution | >256 Microsteps |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 0V ~ 5.5V |
| Voltage - Load | 4.5V ~ 33V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8835DSSR | Texas Instruments | IC MTR DRVR BIPOLAR 2-7V 12WSON | 100% | View |
| DRV8889AQPWPRQ1 | Texas Instruments | AUTOMOTIVE 45-V, 1.5-A BIPOLAR S | 100% | View |
| DRV8889QWRGERQ1 | Texas Instruments | AUTOMOTIVE STEPPER DRIVER | 100% | View |
| DRV8889QPWPRQ1 | Texas Instruments | AUTOMOTIVE STEPPER DRIVER | 100% | View |
| DRV10970PWP | Texas Instruments | IC MOTOR DRIVER 5V-18V 24HTSSOP | 97% | View |
| DRV10975PWPR | Texas Instruments | IC MOTOR DRVR 6.5V-18V 24HTSSOP | 91% | View |
Submit your RFQ for DRV8426PWPR and get a quote within 24 hours.
