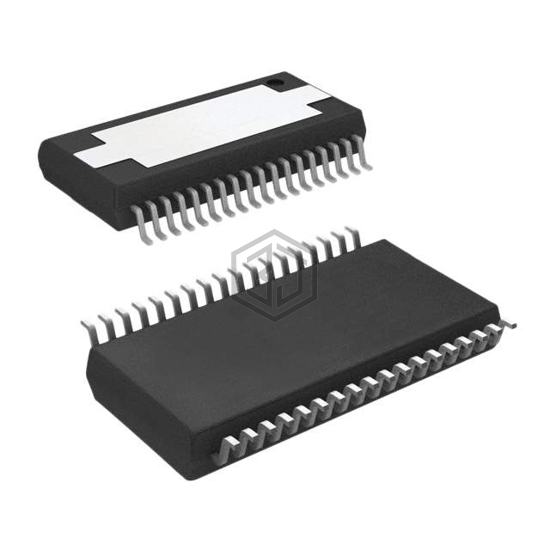

IC MOTOR DRIVER BIPOLAR 36HSSOP
DRV8402DKDR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. IC MOTOR DRIVER BIPOLAR 36HSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 11.4V ~ 13.2V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.
In Stock: 8,944
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushless DC (BLDC), Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 5A |
| Voltage - Supply | 11.4V ~ 13.2V |
| Voltage - Load | 0V ~ 52.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | 36-HSSOP |
DRV8402DKDR is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLE52052GAUMA1 | Infineon Technologies | IC MOTOR DRIVER 5.3V-40V TO263-7 | 81% | View |
| MC33887APVW | NXP USA Inc. | IC MOTOR DRIVER 5V-28V 20HSOP | 80% | View |
| MC33886PVWR2 | NXP USA Inc. | IC MOTOR DRIVER 5V-40V 20HSOP | 80% | View |
| MC33887PFKR2 | NXP USA Inc. | IC MOTOR DRIVER 5V-28V 36PQFN | 80% | View |
| MC33887PEK | Freescale Semiconductor | H-BRIDGE, BRUSHED DC MOTOR DRIVE | 80% | View |
| MC33887PEKR2 | Freescale Semiconductor | IC MOTOR DRIVER PAR 54SOIC | 80% | View |
Submit your RFQ for DRV8402DKDR and get a quote within 24 hours.
