100-V MAX SIMPLE 3-PHASE GATE DR

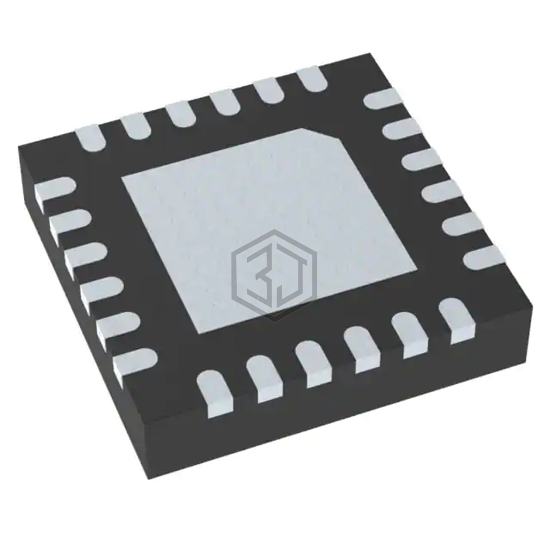

DRV8300DRGER is a PMIC - Gate Drivers manufactured by Texas Instruments. 100-V MAX SIMPLE 3-PHASE GATE DR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 5V ~ 20V, package / case 24-VFQFN Exposed Pad.
In Stock: 5,451
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side and Low-Side |
| Channel Type | 3-Phase |
| Number of Drivers | 3 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 750mA, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 105 V |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8300NRGER | Texas Instruments | 100-V MAX SIMPLE 3-PHASE GATE DR | 100% | View |
| DRV8300DIPWR | Texas Instruments | 100-V MAX SIMPLE 3-PHASE GATE DR | 100% | View |
| DRV8300DPWR | Texas Instruments | 100-V MAX SIMPLE 3-PHASE GATE DR | 100% | View |
| DRV8300NPWR | Texas Instruments | 100-V MAX SIMPLE 3-PHASE GATE DR | 100% | View |
| DRV8300UDRGER | Texas Instruments | IC GATE DRVR HI/LOW SIDE 24VFQFN | 92% | View |
| DRV8300DPWRQ1 | Texas Instruments | AUTOMOTIVE 100-V MAX SIMPLE 3-PH | 91% | View |
Submit your RFQ for DRV8300DRGER and get a quote within 24 hours.
