IC MOTOR DRIVER

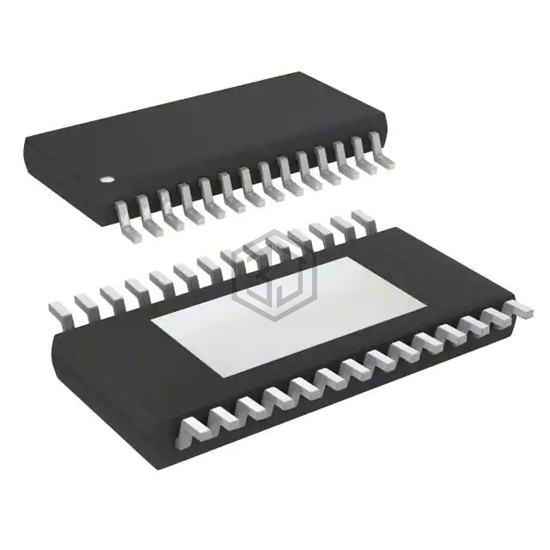

DRV8256PPWPR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. IC MOTOR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 48V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 3,172
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar, Unipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | On/Off, PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Printer |
| Current - Output | 5A |
| Voltage - Supply | 4.5V ~ 48V |
| Voltage - Load | 4.5V ~ 48V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8256EPWPR | Texas Instruments | IC MOTOR DRIVER | 100% | View |
| MC33932EKR2 | NXP USA Inc. | IC MOTOR DRIVER 5V-28V 54SOIC | 96% | View |
| MC33887APVW | NXP USA Inc. | IC MOTOR DRIVER 5V-28V 20HSOP | 96% | View |
| MC33932EK | NXP USA Inc. | IC MOTOR DRIVER 5V-28V 54SOIC | 96% | View |
| MC33886PVWR2 | NXP USA Inc. | IC MOTOR DRIVER 5V-40V 20HSOP | 96% | View |
| MC33887PEK | Freescale Semiconductor | H-BRIDGE, BRUSHED DC MOTOR DRIVE | 96% | View |
Submit your RFQ for DRV8256PPWPR and get a quote within 24 hours.
