33V H BRIDGE MOTOR DRIVER WITH C

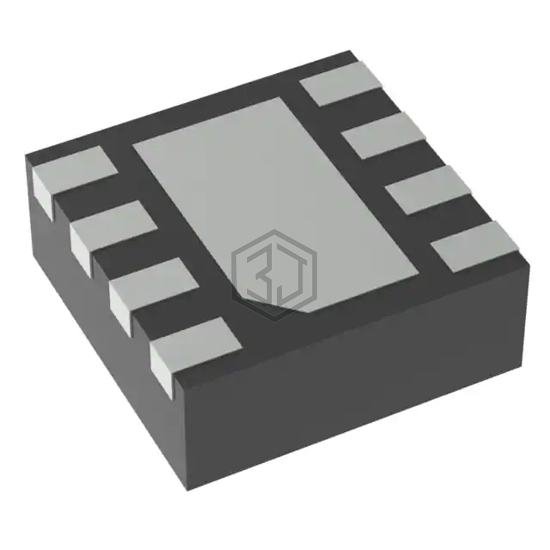

DRV8231DSGR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. 33V H BRIDGE MOTOR DRIVER WITH C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 33V, package / case 8-WFDFN Exposed Pad.
In Stock: 2,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Interface | PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Printer |
| Current - Output | 3.7A |
| Voltage - Supply | 4.5V ~ 33V |
| Voltage - Load | 4.5V ~ 33V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8231ADSGR | Texas Instruments | 33V H BRIDGE MOTOR DRIVER WITH C | 100% | View |
| DRV8231ADDAR | Texas Instruments | 33V H BRIDGE MOTOR DRIVER WITH C | 100% | View |
| DRV8231DDAR | Texas Instruments | 33V H BRIDGE MOTOR DRIVER WITH C | 100% | View |
| MAX22203ATU+ | Analog Devices Inc./Maxim Integrated | DUAL H-BRIDGE FOR STEPPER AND BR | 99% | View |
| MAX22204ATU+ | Analog Devices Inc./Maxim Integrated | DUAL H-BRIDGE FOR STEPPER AND BR | 99% | View |
| DRV8871DDAR | Texas Instruments | IC MOTOR DRVR UNIPLR 8SO PWRPAD | 89% | View |
Submit your RFQ for DRV8231DSGR and get a quote within 24 hours.
