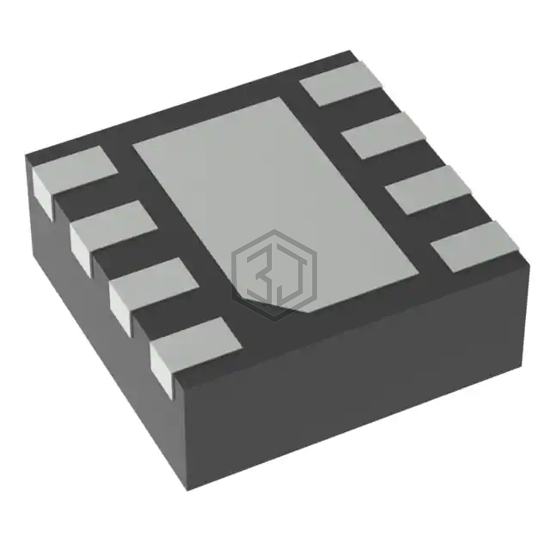

12-V, 3-A H-BRIDGE MOTOR DRIVER,
DRV8212PDSGR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. 12-V, 3-A H-BRIDGE MOTOR DRIVER,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case 8-WFDFN Exposed Pad.
In Stock: 5,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | On/Off, PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Camera |
| Current - Output | 4A |
| Voltage - Supply | 1.65V ~ 5.5V |
| Voltage - Load | 0V ~ 11V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8212DRLR | Texas Instruments | 12-V, 2-A LOW VOLTAGE H-BRIDGE M | 100% | View |
| DRV8411PWPR | Texas Instruments | DRV8411PWPR | 100% | View |
| MAX22203AUU+T | Analog Devices Inc./Maxim Integrated | DUAL H-BRIDGE FOR STEPPER AND BR | 72% | View |
| L6234PD013TR | STMicroelectronics | IC MOTOR DRIVER 7V-52V 20POWERSO | 64% | View |
| IRSM836-045MA | Infineon Technologies | IC MTR DRIVER 13.5V-16.5V 36PQFN | 60% | View |
| IRSM836-044MA | Infineon Technologies | IC MTR DRIVER 13.5V-16.5V 36PQFN | 60% | View |
Submit your RFQ for DRV8212PDSGR and get a quote within 24 hours.
