DC DC CONVERTER 3.3V 1W

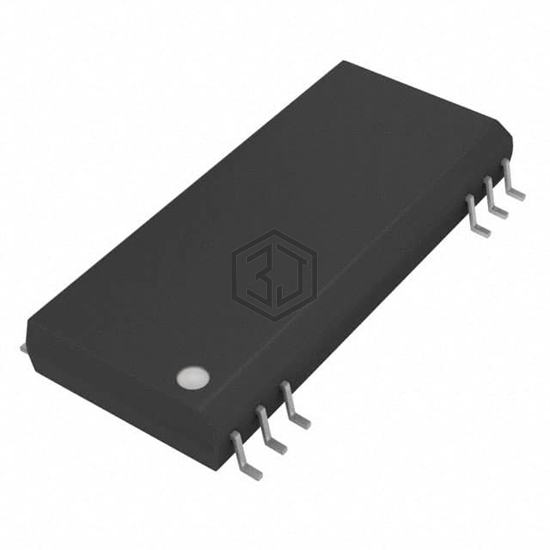

DCR012403U is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 3.3V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 28-SOIC (0.295", 7.50mm Width), 12 Leads, current - output (max) 300mA.
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width), 12 Leads |
| Size / Dimension | 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm) |
| Supplier Device Package | 12-SOP |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for DCR012403U and get a quote within 24 hours.
