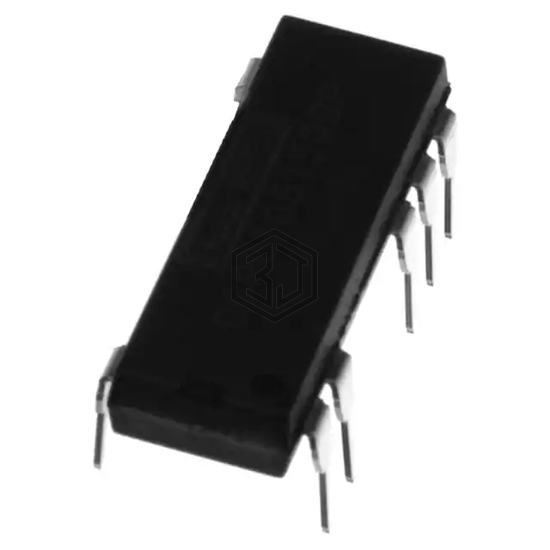

DC DC CONVERTER 15V 1W
DCP010515BP is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 15V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 14-DIP (0.300", 7.62mm), 7 Leads, current - output (max) 67mA.
In Stock: 350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm), 7 Leads |
| Size / Dimension | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
| Supplier Device Package | 7-PDIP |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for DCP010515BP and get a quote within 24 hours.
