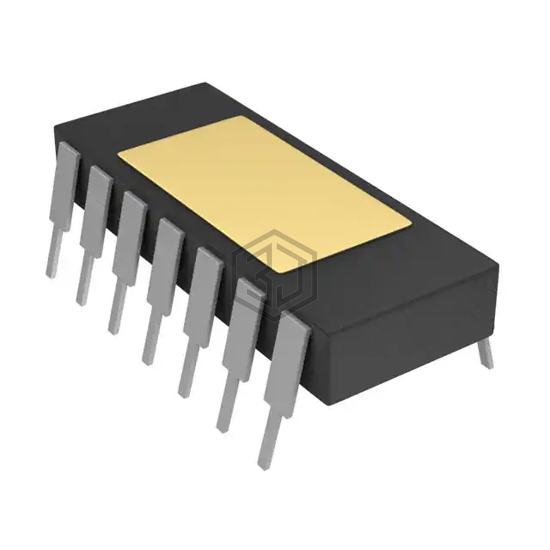

IC DAC 12BIT V-OUT 28CDIP
DAC811AH is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 12BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply, digital 5V, package / case 28-CDIP (0.600", 15.24mm) Window.
In Stock: 1,287
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) Window |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
DAC811AH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP4821-E/P | Microchip Technology | IC DAC 12BIT V-OUT 8DIP | 90% | View |
| MCP4811-E/P | Microchip Technology | IC DAC 10BIT V-OUT 8DIP | 88% | View |
| AD558SD | Analog Devices Inc. | IC DAC 8BIT V-OUT 16CDIP | 86% | View |
| MCP4801-E/P | Microchip Technology | IC DAC 8BIT V-OUT 8DIP | 85% | View |
| MCP4822-E/P | Microchip Technology | IC DAC 12BIT V-OUT 8DIP | 82% | View |
| MCP4812-E/P | Microchip Technology | IC DAC 10BIT V-OUT 8DIP | 80% | View |
Submit your RFQ for DAC811AH and get a quote within 24 hours.
