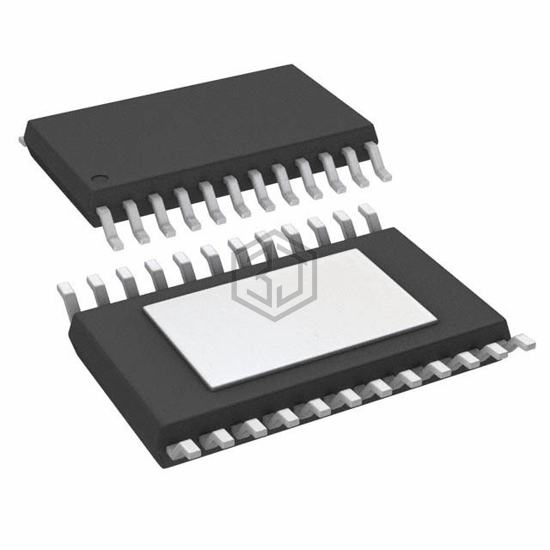

IC DAC 12BIT V OR A-OUT 24HTSSOP
DAC7760IPWPR is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 12BIT V OR A-OUT 24HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 4,396
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 25µs (Typ) |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 10V ~ 36V, -18V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-HTSSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC7760IPWP | Texas Instruments | IC DAC 12BIT V OR A-OUT 24HTSSOP | 100% | View |
| DAC7760IRHAR | Texas Instruments | IC DAC 12BIT V OR A-OUT 40VQFN | 100% | View |
| DAC7760IRHAT | Texas Instruments | IC DAC 12BIT V OR A-OUT 40VQFN | 100% | View |
| DAC8760IRHAT | Texas Instruments | IC DAC 16BIT V OR A-OUT 40VQFN | 97% | View |
| DAC8760IRHAR | Texas Instruments | IC DAC 16BIT V OR A-OUT 40VQFN | 97% | View |
| DAC8771RGZT | Texas Instruments | IC DAC 16BIT V OR A-OUT 48VQFN | 91% | View |
Submit your RFQ for DAC7760IPWPR and get a quote within 24 hours.
