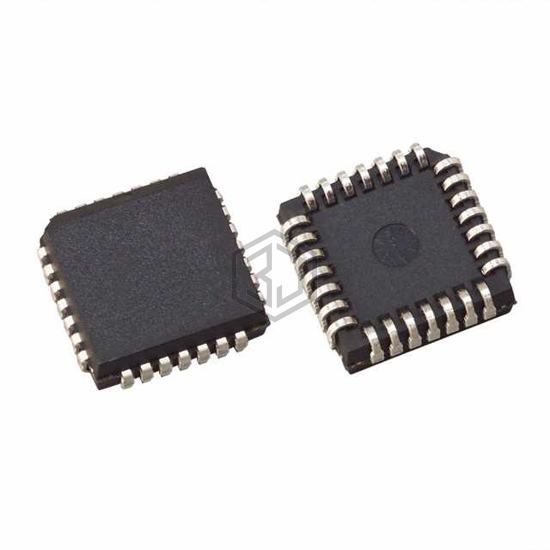

IC DAC 12BIT V-OUT 28PLCC
DAC7725N is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 12BIT V-OUT 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-LCC (J-Lead).
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount |
DAC7725N is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8412FPCZ-REEL | Analog Devices Inc. | IC DAC 12BIT V-OUT 28PLCC | 100% | View |
| MAX5250BEAP+T | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 20SSOP | 98% | View |
| DAC7616UB | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 94% | View |
| AD5764ASUZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 32TQFP | 90% | View |
| AD5765CSUZ | Analog Devices Inc. | IC DAC 16BIT V-OUT 32TQFP | 90% | View |
| DAC7613EB/1K | Texas Instruments | IC DAC 12BIT V-OUT 24SSOP | 84% | View |
Submit your RFQ for DAC7725N and get a quote within 24 hours.
