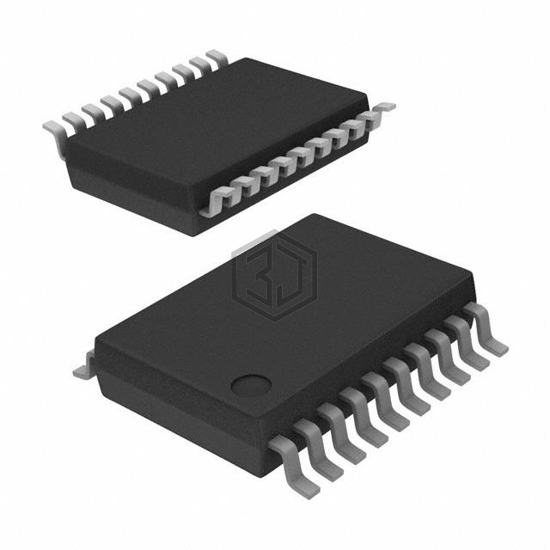

IC DAC 12BIT V-OUT 20SSOP
DAC7614EB/1K is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 12BIT V-OUT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 6,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8413FPCZ-REEL | Analog Devices Inc. | IC DAC 12BIT V-OUT 28PLCC | 100% | View |
| DAC7625U/1K | Texas Instruments | IC DAC 12BIT V-OUT 28SOIC | 100% | View |
| DAC7614U/1K | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 100% | View |
| AD7835APZ | Analog Devices Inc. | IC DAC 14BIT V-OUT 44PLCC | 98% | View |
| MAX5742EUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 10UMAX | 93% | View |
| AD5325ARMZ-REEL7 | Analog Devices Inc. | IC DAC 12BIT V-OUT 10MSOP | 92% | View |
Submit your RFQ for DAC7614EB/1K and get a quote within 24 hours.
