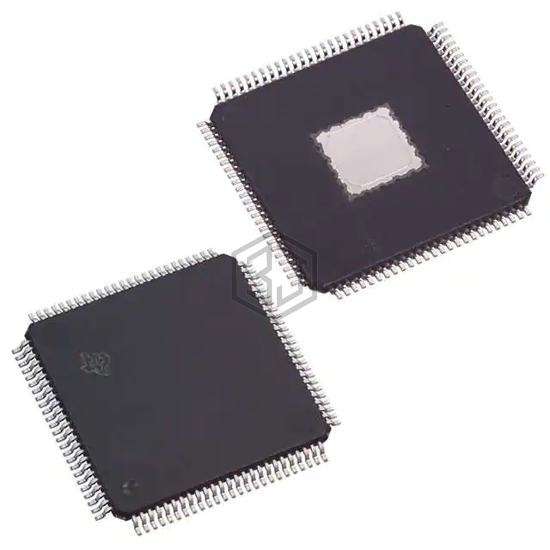

IC DAC 16BIT A-OUT 100HTQFP
DAC5686IPZPG4 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 16BIT A-OUT 100HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.65V ~ 1.95V, package / case 100-TQFP Exposed Pad.
In Stock: 176
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Number of Bits | 16 |
| Number of D/A Converters | 2 |
| Settling Time | 12ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| INL/DNL (LSB) | 12, 9 |
| Architecture | Current Sink |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-HTQFP (14x14) |
| Mounting Type | Surface Mount |
DAC5686IPZPG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC5686IPZP | Texas Instruments | IC DAC 16BIT A-OUT 100HTQFP | 100% | View |
| AD9789BBCZRL | Analog Devices Inc. | IC DAC 14BIT A-OUT 164CSPBGA | 88% | View |
| DAC5675IPHP | Texas Instruments | IC DAC 14BIT A-OUT 48HTQFP | 85% | View |
| DAC5675AIPHP | Texas Instruments | IC DAC 14BIT A-OUT 48HTQFP | 85% | View |
| DAC5675MPHPREP | Texas Instruments | IC DAC 14BIT A-OUT 48HTQFP | 85% | View |
| AD9739BBCRL | Analog Devices Inc. | IC DAC 14BIT A-OUT 160CSPBGA | 84% | View |
Submit your RFQ for DAC5686IPZPG4 and get a quote within 24 hours.
