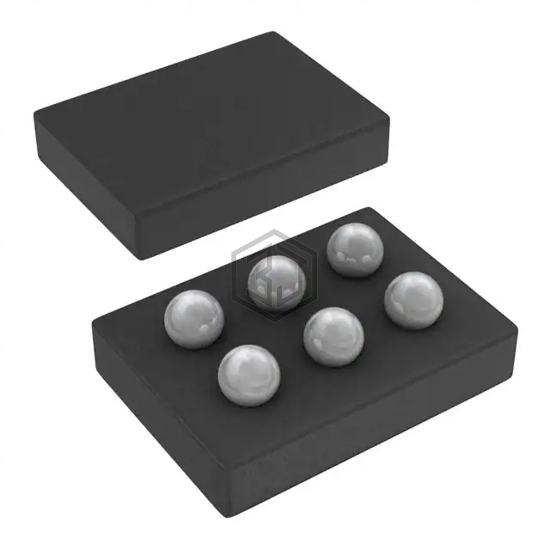

MOSFET P-CH 20V 3A 6DSBGA
CSD25303W1015 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 20V 3A 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, DSBGA.
In Stock: 4,390
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 58mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.3 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 435 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DSBGA (1x1.5) |
| Package / Case | 6-UFBGA, DSBGA |
Submit your RFQ for CSD25303W1015 and get a quote within 24 hours.
