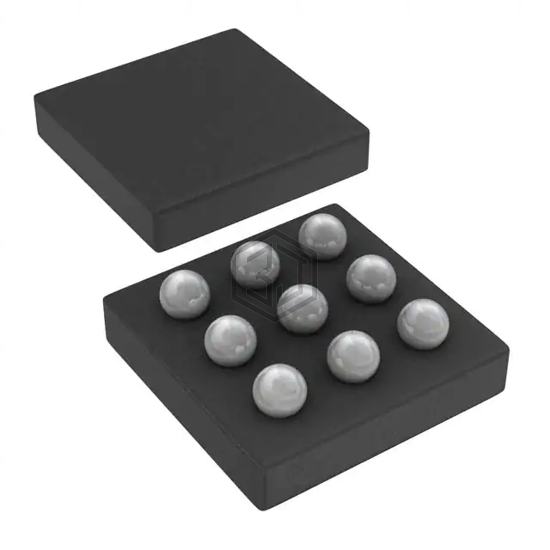

MOSFET P-CH 8V 5A 9DSBGA
CSD22206WT is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 8V 5A 9DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-UFBGA, DSBGA.
In Stock: 15,456
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 8 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 5.7mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.05V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.6 nC @ 4.5 V |
| Vgs (Max) | -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 2275 pF @ 4 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.7W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 9-DSBGA |
| Package / Case | 9-UFBGA, DSBGA |
Submit your RFQ for CSD22206WT and get a quote within 24 hours.
