MOSFET P-CH 8V 7.4A 4PICOSTAR

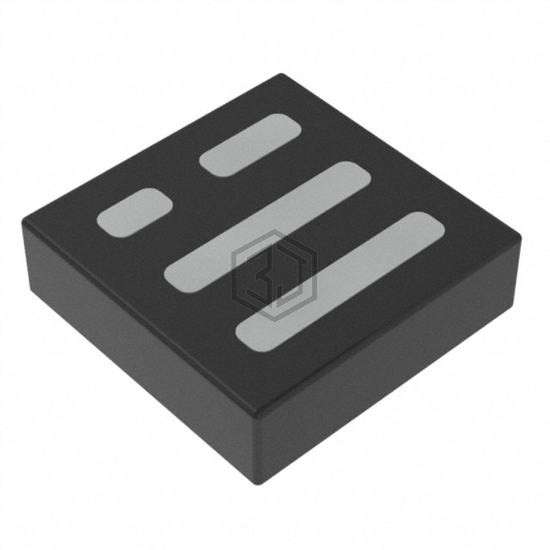

CSD22205L is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET P-CH 8V 7.4A 4PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFLGA.
In Stock: 22,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 8 V |
| Current - Continuous Drain (Id) @ 25°C | 7.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 9.9mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.05V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.5 nC @ 4.5 V |
| Vgs (Max) | -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 1390 pF @ 4 V |
| FET Feature | - |
| Power Dissipation (Max) | 600mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-PICOSTAR |
| Package / Case | 4-XFLGA |
Submit your RFQ for CSD22205L and get a quote within 24 hours.
