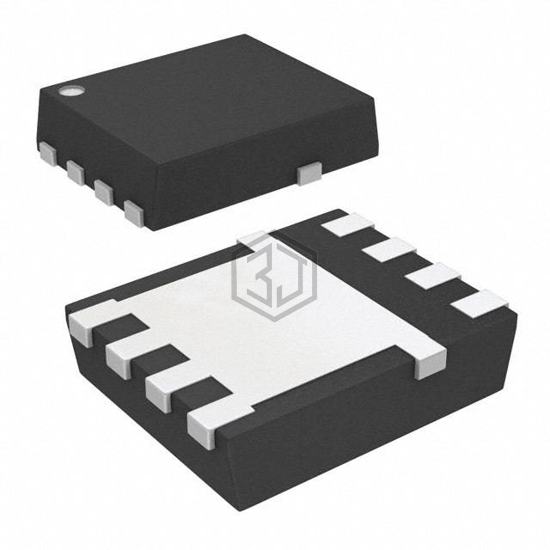

MOSFET N-CH 30V 24A/123A 8VSON
CSD17581Q5A is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 30V 24A/123A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C (TJ), package / case 8-PowerTDFN.
In Stock: 1,629
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 123A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 1.7V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3640 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 83W (Tc) |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSONP (5x6) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for CSD17581Q5A and get a quote within 24 hours.
