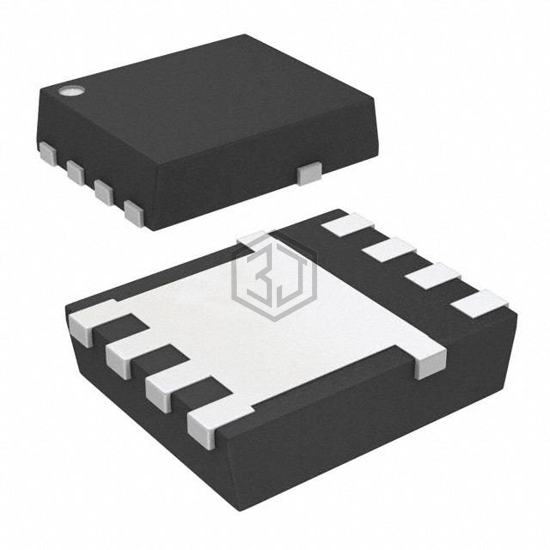

MOSFET N-CH 25V 21A/81A 8VSON
CSD16404Q5A is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 25V 21A/81A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta), 81A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.1mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.5 nC @ 4.5 V |
| Vgs (Max) | +16V, -12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1220 pF @ 12.5 V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSONP (5x6) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for CSD16404Q5A and get a quote within 24 hours.
