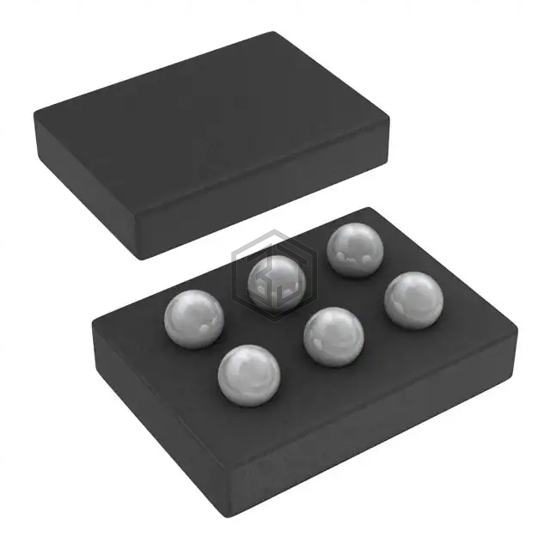

MOSFET N-CH 12V 31A 6DSBGA
CSD13303W1015 is a Transistors - FETs, MOSFETs - Single manufactured by Texas Instruments. MOSFET N-CH 12V 31A 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, DSBGA.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.7 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 715 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.65W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DSBGA (1x1.5) |
| Package / Case | 6-UFBGA, DSBGA |
Submit your RFQ for CSD13303W1015 and get a quote within 24 hours.
