IC EXPND AND-ORINV GATE 14-DIP

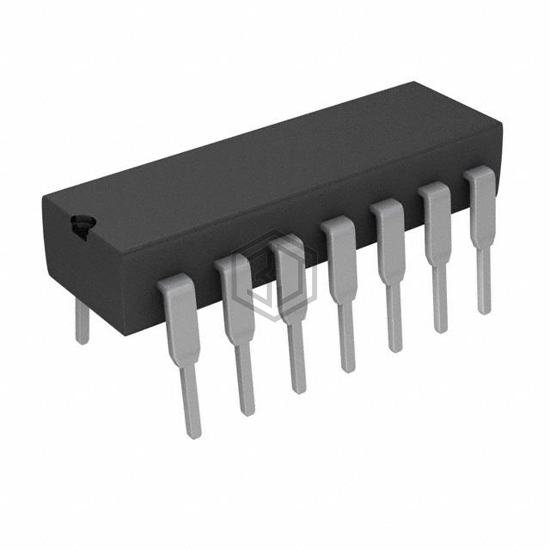

CD4086BEE4 is a Logic - Gates and Inverters - Multi-Function, Configurable manufactured by Texas Instruments. IC EXPND AND-ORINV GATE 14-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 18V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | AND/OR/INVERT Gate |
| Number of Circuits | 1 |
| Number of Inputs | 8 Input (2, 2, 2, 2) |
| Schmitt Trigger Input | No |
| Output Type | Single-Ended |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD4078BD3 | Harris Corporation | CMOS 8-INPUT OR/NOR GATE | 100% | View |
| CD4068BD3 | Harris Corporation | CMOS 8-INPUT AND/NAND GATE | 100% | View |
| CD4068BE | Texas Instruments | IC NAND/AND GATE 8-IN 14-DIP | 100% | View |
| CD4068BEX | Harris Corporation | CMOS 8-INPUT AND/NAND GATE | 100% | View |
| CD4086BD | Harris Corporation | CMOS 8-INPUT AND-OR-INVERT GATE | 100% | View |
| CD4078BF/3 | Harris Corporation | CMOS 8-INPUT OR/NOR GATE | 100% | View |
Submit your RFQ for CD4086BEE4 and get a quote within 24 hours.
