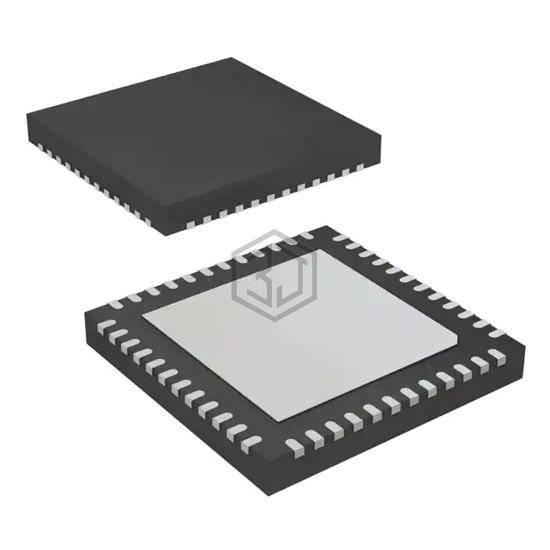

IC ADC 16BIT PIPELINED 48VQFN
ADS5560IRGZ25 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 16BIT PIPELINED 48VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 48-VFQFN Exposed Pad.
In Stock: 5,742
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Mounting Type | Surface Mount |
ADS5560IRGZ25 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADS5542IPAPR | Texas Instruments | IC ADC 14BIT PIPELINED 64HTQFP | 98% | View |
| LTC2107IUK | Analog Devices Inc. | IC ADC 16BIT PIPELINED 48QFN | 94% | View |
| ADC1613S105HN/C1:5 | Renesas Electronics America Inc | IC ADC 16BIT PIPELINED 32HVQFN | 92% | View |
| XRD87L75AIUTR | MaxLinear, Inc. | IC ADC 8BIT FLASH 20SSOP | 91% | View |
| ADS5411IPJYG3 | Texas Instruments | IC ADC 11BIT PIPELINED 52QFP | 89% | View |
| MAX174AEWI+T | Analog Devices Inc./Maxim Integrated | IC ADC 12BIT SAR 28SOIC | 84% | View |
Submit your RFQ for ADS5560IRGZ25 and get a quote within 24 hours.
