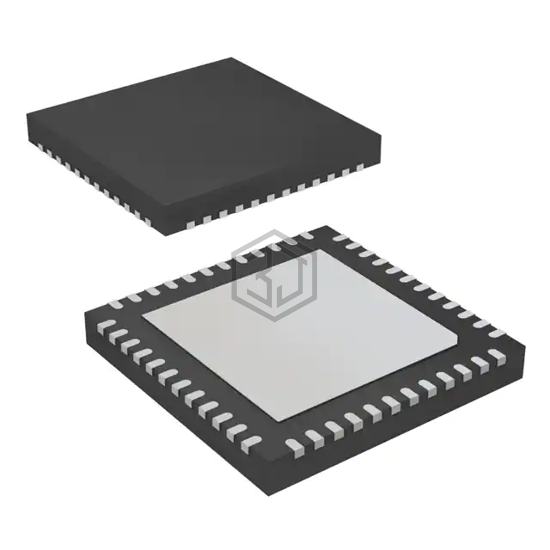

IC ADC 14BIT PIPELINED 48VQFN
ADS5545IRGZT is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 48VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 48-VFQFN Exposed Pad.
In Stock: 5,379
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 170M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2311HMSE-14#WPBF | Analog Devices Inc. | 14-B + SIGN, 5MSPS DIFF IN ADC W | 99% | View |
| LTC2255IUH#PBF | Analog Devices Inc. | IC ADC 14BIT PIPELINED 32QFN | 99% | View |
| LTC1402IGN#TRPBF | Analog Devices Inc. | IC ADC 12BIT SAR 16SSOP | 97% | View |
| LTC2230IUP#PBF | Analog Devices Inc. | IC ADC 10BIT PIPELINED 64QFN | 95% | View |
| LTC1403HMSE#TRPBF | Analog Devices Inc. | IC ADC 12BIT SAR 10MSOP | 95% | View |
| ADS1605IPAPT | Texas Instruments | IC ADC 16BIT SIGMA-DELTA 64HTQFP | 91% | View |
Submit your RFQ for ADS5545IRGZT and get a quote within 24 hours.
