IC ADC 12BIT PIPELINED 48TQFP

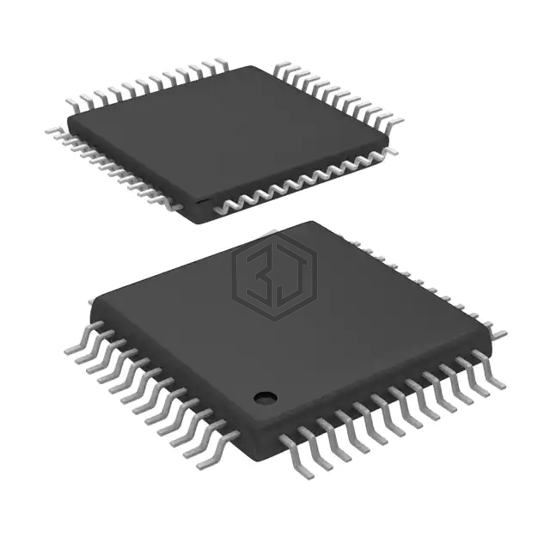

ADS5220PFBRG4 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 48TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 48-TQFP.
In Stock: 3,691
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| Mounting Type | Surface Mount |
ADS5220PFBRG4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADC1415S125HN-C18 | Renesas Electronics America Inc | IC ADC 14BIT PIPELINED 40VFQFPN | 97% | View |
| LTC2230IUP | Analog Devices Inc. | IC ADC 10BIT PIPELINED 64QFN | 97% | View |
| CS5508-BSZ | Cirrus Logic Inc. | IC ADC 20BIT SIGMA-DELTA 20SOIC | 91% | View |
| ADS8402IPFBTG4 | Texas Instruments | IC ADC 16BIT SAR 48TQFP | 90% | View |
| ADS8372IRHPR | Texas Instruments | IC ADC 16BIT SAR 28VQFN | 89% | View |
| MAX1123EGK+TD | Analog Devices Inc./Maxim Integrated | IC ADC 10BIT PIPELINED 68QFN | 84% | View |
Submit your RFQ for ADS5220PFBRG4 and get a quote within 24 hours.
