IC ADC 12BIT PIPELINED 56QFN

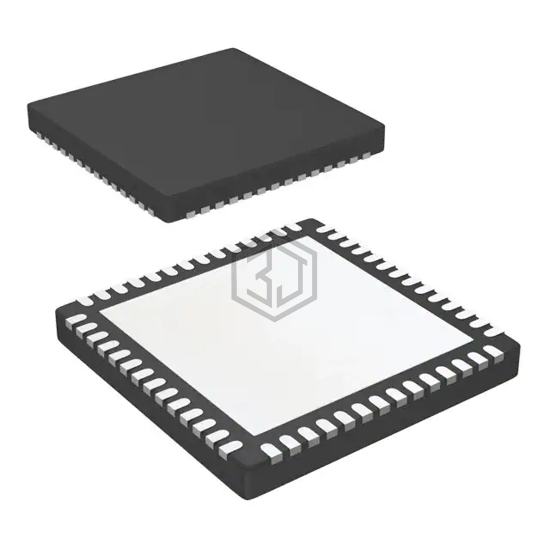

ADC3424IRTQ25 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 12BIT PIPELINED 56QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 56-VFQFN Exposed Pad.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 4 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-QFN (8x8) |
| Mounting Type | Surface Mount |
ADC3424IRTQ25 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2170IUKG-12#PBF | Analog Devices Inc. | IC ADC 12BIT PIPELINED 52QFN | 100% | View |
| AD9633BCPZ-105 | Analog Devices Inc. | IC ADC 12BIT PIPELINED 48LFCSP | 100% | View |
| LTC2325HUKG-14#TRPBF | Analog Devices Inc. | IC ADC 14BIT SAR 52QFN | 83% | View |
| AD7366BRUZ-500RL7 | Analog Devices Inc. | IC ADC 12BIT SAR 24TSSOP | 82% | View |
| LTC2325IUKG-16#PBF | Analog Devices Inc. | IC ADC 16BIT SAR 52QFN | 81% | View |
| LTC2344HUH-18#PBF | Analog Devices Inc. | IC ADC 18BIT SAR 32QFN | 68% | View |
Submit your RFQ for ADC3424IRTQ25 and get a quote within 24 hours.
