SINGLE-CHANNEL, 9-BIT, 800-MSPS

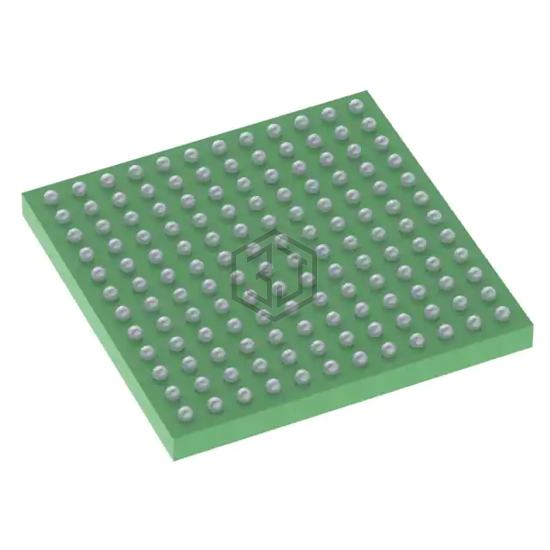

ADC09SJ800AAV is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. SINGLE-CHANNEL, 9-BIT, 800-MSPS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.05V ~ 1.15V, package / case 144-FBGA, FCBGA.
In Stock: 5,370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 9 |
| Sampling Rate (Per Second) | 800M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | JESD204C, Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Pipelined, SAR |
| Reference Type | - |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADC09SJ800AAVTQ1 | Texas Instruments | IC ANALOG TO DIGITAL CONVERTER | 100% | View |
| ADS7039QDCURQ1 | Texas Instruments | IC ADC 10BIT SAR 8VSSOP | 83% | View |
| MCP3562T-E/NC | Microchip Technology | IC ADC 24BIT SIGMA-DELTA 20UQFN | 70% | View |
| MCP3561RT-E/NC | Microchip Technology | IC ADC 24BIT SIGMA-DELTA 20UQFN | 69% | View |
| MCP3561RT-E/ST | Microchip Technology | IC ADC 24BIT SIGMA-DELTA 20TSSOP | 69% | View |
| MCP3561T-E/ST | Microchip Technology | IC ADC 24BIT SIGMA-DELTA 20TSSOP | 69% | View |
Submit your RFQ for ADC09SJ800AAV and get a quote within 24 hours.
