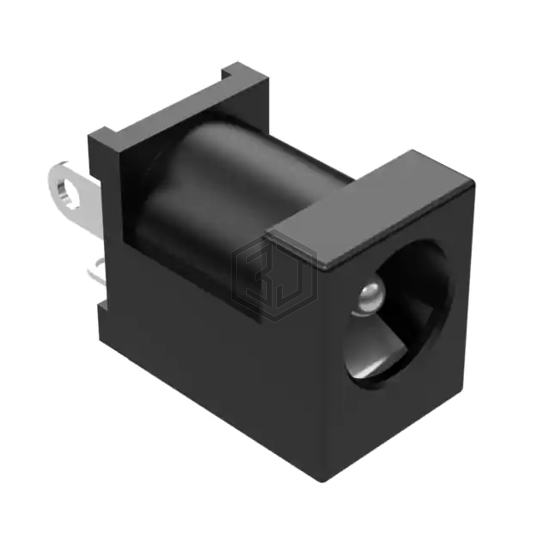

CONN JACK PWR 2.1MM PCB
54-00286 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK PWR 2.1MM PCB. Key specifications: mounting type Through Hole, voltage - rated 48VDC, current rating (amps) 7 A, termination Solder Eyelet(s).
In Stock: 9,999
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.252" (6.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 48VDC |
| Current Rating (Amps) | 7 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 54-00286 and get a quote within 24 hours.
