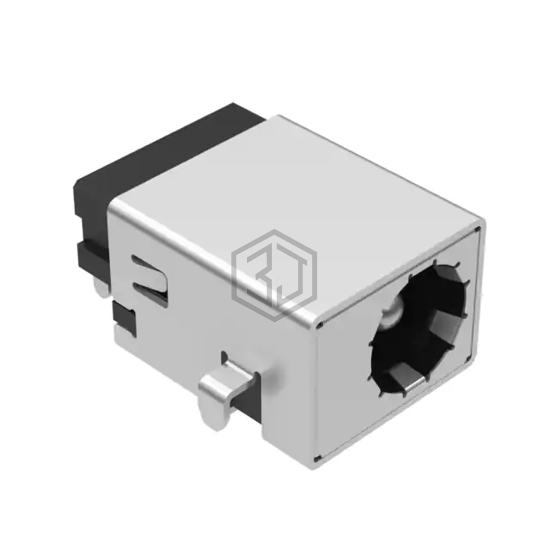

CONN PWR JACK 2.5X5.5MM SHLD
54-00256 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN PWR JACK 2.5X5.5MM SHLD. Key specifications: mounting type Board Cutout, Through Hole, Right Angle, voltage - rated 48V, current rating (amps) 8 A, termination Solder.
In Stock: 5,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.228" (5.80mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Board Cutout, Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 8 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 54-00256 and get a quote within 24 hours.
