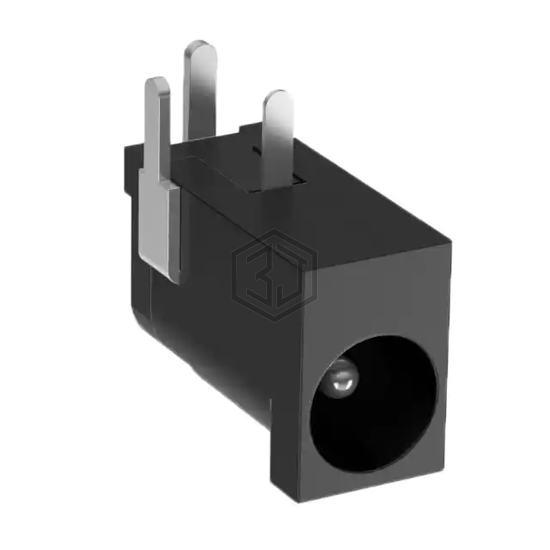

CONN JACK R/A PCB 3.5X1.35MM
54-00168 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK R/A PCB 3.5X1.35MM. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 48V, current rating (amps) 5.5 A, termination Solder.
In Stock: 12,276
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
| Actual Diameter | 0.051" (1.30mm ID), 0.169" (4.30mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 5.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
