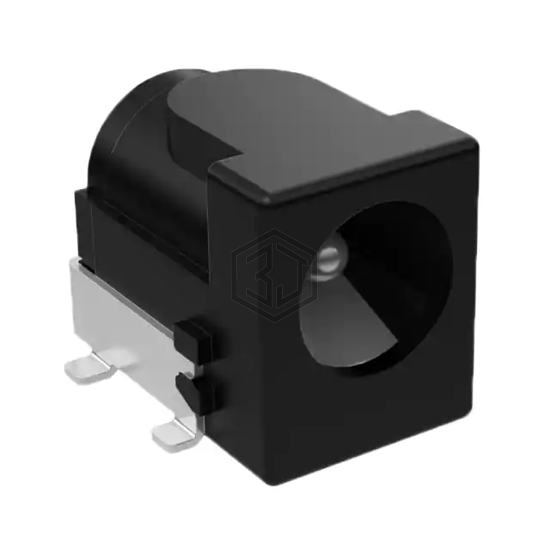

CONN JACK R/A SMT 5.5X2.1MM
54-00164 is a Barrel - Power Connectors manufactured by Tensility International Corp. CONN JACK R/A SMT 5.5X2.1MM. Key specifications: mounting type Surface Mount, Right Angle, voltage - rated 48V, current rating (amps) 5.5 A, termination Solder.
In Stock: 8,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.252" (6.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 48V |
| Current Rating (Amps) | 5.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 54-00164 and get a quote within 24 hours.
